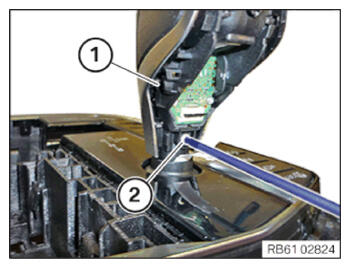

Installing the selector lever

• Position the selector lever (1)  .
• Replace the screw (2)  .

  Parts:  Screw

• Tighten down screw (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Selector lever on gear selector switch
  Screw	Tightening torque	0.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

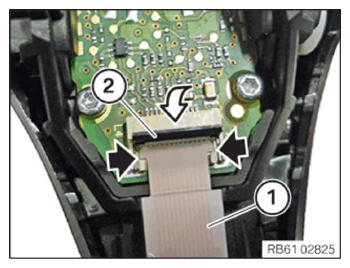

• Position the ribbon cable (1)  correctly on the selector lever (arrows).
• Lock the connector (2)  in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

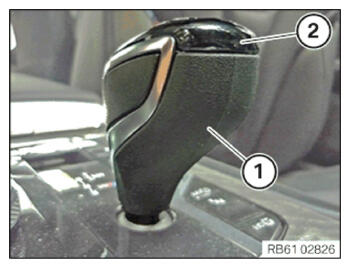

• Replace the trim (1)  .

  Parts:  trim

• Position the trim (1)  on the gearshift lever knob (2)  and lock in place.

  Snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CONTROLLER .
• Refer to INSTALLING THE HDC BUTTON/TRIM .
• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE DECORATIVE TRIM ON THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER OF THE VENTILATION GRILLE WITH THE INTEGRATED AIR CONDITIONING CONTROL PANEL .
• Refer to INSTALLING THE CENTER STACK MODULE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
