Replacing the trim of the START-STOPPING button

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
• Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to REMOVING CENTER ARMREST .
• Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
• Refer to REMOVING CUP HOLDER .
• Refer to REMOVING THE WIRELESS CHARGING STORAGE .
• Refer to REMOVING THE CENTER STACK MODULE .
• Refer to REMOVING CENTER FRESH AIR GRILLE WITH INTEGRATED AIR CONDITIONING CONTROL UNIT .
• Refer to REMOVING DECORATIVE TRIM ON CENTER CONSOLE .
• Refer to REMOVING THE CONTROL UNIT IN THE CENTER CONSOLE .
• Refer to REMOVING THE HDC BUTTON/TRIM .
• Refer to REMOVING CONTROLLER .
• Refer to REMOVING THE SELECTOR LEVER .
• Refer to REMOVING TRIM PANELS ON THE OPERATING FACILITY IN THE CENTER CONSOLE .

Removing the trim of the START-STOP button:

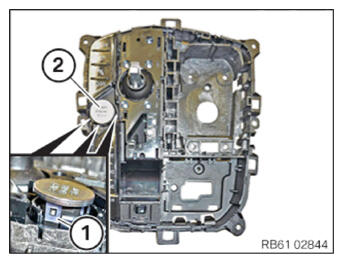

• Release all detents (1)  and remove the trim from the START-STOPPING button (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the START-STOPPING button trim.

  Parts:  The START-STOPPING button trim

Installing START-STOPPING button trim

• Position trim (2)  on the START-STOPPING button and engage it.

  All retaining lugs (1)  must audibly snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIMS ON THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE SELECTOR LEVER .
• Refer to INSTALLING CONTROLLER .
• Refer to INSTALLING THE HDC BUTTON/TRIM .
• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE DECORATIVE TRIM ON THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER OF THE VENTILATION GRILLE WITH THE INTEGRATED AIR CONDITIONING CONTROL PANEL .
• Refer to INSTALLING THE CENTER STACK MODULE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
