Install audio control unit

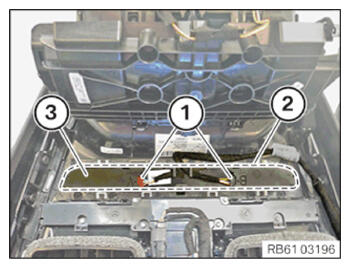

- Correctly position the audio control unit (3) and clip it into the detents (2).
- Connect plug (1).
Follow-up work
- Refer to INSTALLING THE CENTER STACK MODULE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
