Install the control unit for contact detection

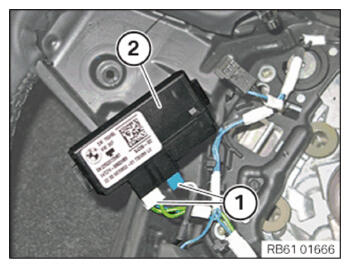

• Connect both connectors (1) to the control unit (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

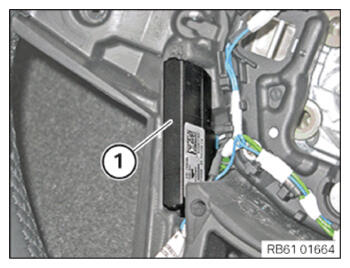

• Insert the control unit (1) into the steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE TRIM FOR THE SPORTS STEERING WHEEL (SA255) .
• Refer to INSTALLING THE DECORATIVE TRIM FOR THE M SPORT STEERING WHEEL (SA710) .
• Refer to IF INSTALLED: INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
