General Electrical System -- Repair (G14, G15, & G16)
>>
61 31 Switches
>>
61 31 117 Removing and installing/replacing power window switch on driver's side
>>
Replacement: Remounting the trim of the power window switch
Replacement: Remounting the trim of the power window switch

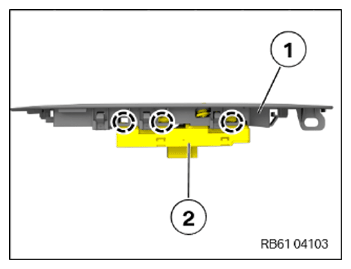

Release the power window switch (2) on both sides at the marked points.
Remove the trim of the power window switch (1).
Position the new power window switch (2) on the trim of the power window switch (1) and clip in on both sides in the highlighted areas.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
