61 31 116 Replace power window switch for side window operation (rear left or right) (all 8' series Gran Coupe sedan models 2020-)
>>
Install power window switch
Install power window switch

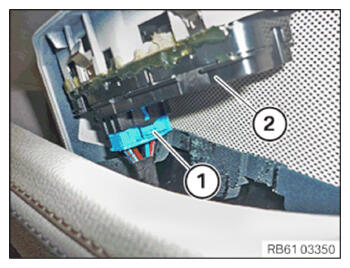

Position the power window switch (2) and connect the connector (1).
Courtesy of BMW OF NORTH AMERICA, INC.

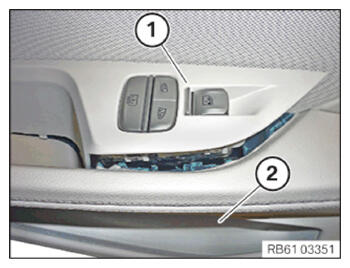

Position the power window switch (1) correctly in the door trim panel (2) and clip it in.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
