General Electrical System -- Repair (G14, G15, & G16)
>>
61 31 Switches
>>
61 31 083 Removing and installing/replacing switch for tailgate release
>>
Remove the tailgate button
Remove the tailgate button
Preliminary work
Refer to
REMOVING FRONT DOOR TRIM PANEL
.
Refer to
REMOVING TRIM OF TAILGATE BUTTON
.

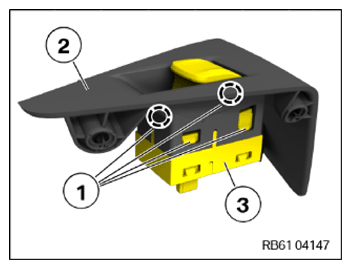

Release detents (1) of trim for tailgate button (2) and remove tailgate button (3).
Courtesy of BMW OF NORTH AMERICA, INC.
