Remove the central locking switch
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING FRONT DOOR TRIM PANEL .
- Refer to REMOVING THE BOWDEN CABLE FOR THE INNER DOOR OPENER .

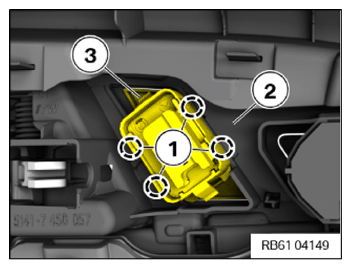

- Release detents (1) on the decorative trim (2).
- Remove central locking button (3).
