Installing the button for the heated steering wheel

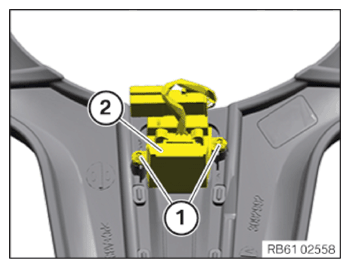

• For vehicles with M-leather steering wheel:

  Position the button for the steering wheel heater (2) and tighten the screws (1).

  TIGHTENING TORQUES SPECIFICATION



  Steering wheel heating button to the decorative trim/cover
  	tightening torque	2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

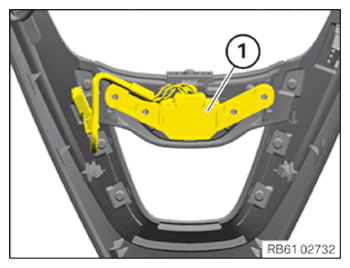

• For vehicles without M-leather steering wheel:

  Position the button for the steering wheel heater (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

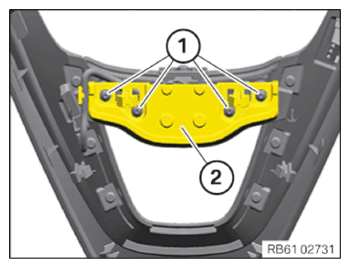

• For vehicles without M-leather steering wheel:

  Position the trim (2) and tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE TRIM FOR THE SPORTS STEERING WHEEL (SA255) .
• Refer to INSTALLING THE DECORATIVE TRIM FOR THE M SPORT STEERING WHEEL (SA710) .
• Refer to IF INSTALLED: INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
