Installing the system battery

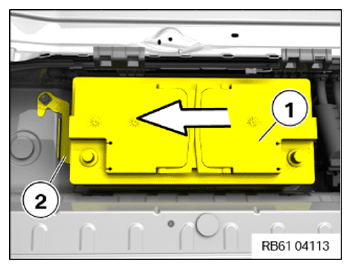

• Insert system battery (1) and slide laterally into the guide (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

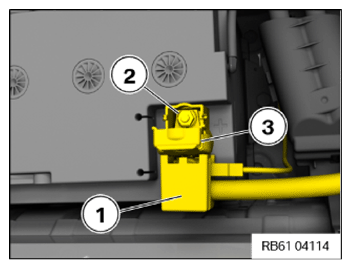

• Position the positive battery cable of the system battery (1) on the positive battery terminal as shown.
• Tighten nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery terminal to battery
  Nut	tightening torque	5 Nm

• Close positive terminal cover (3).

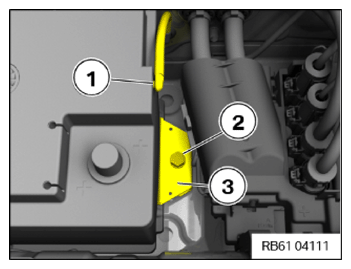

• Position the battery carrier (3) and tighten it with the bolt (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Battery carrier to body
  M8 screw	Tightening torque	15 Nm

• Insert the vent hose (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check the vent holes of the battery

Courtesy of BMW OF NORTH AMERICA, INC.

Check:

• Check if the ventilation opening (1) is correctly closed with a dummy plug.

Result:

» No dummy plug.

Measure:

• Close the vent hole (1) correctly with a dummy plug.

Check:

• Check whether the vent hose (3) is correctly connected to the ventilation opening (2).

Result:

» The vent hose (3) is not correctly connected.

Measure:

• Connect the vent hose (3) correctly to the ventilation opening (2).

Check:

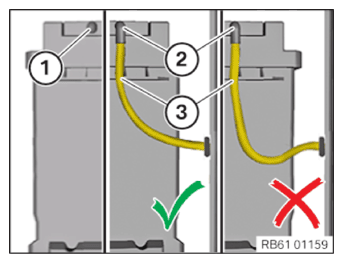

• Check if the vent hose (3) is laid with a slope towards the outside (no siphon formation)  .

Result:

» The vent hose (3) is not routed correctly as shown on the right side.

Measure:

• Route the vent hose (3) correctly as shown in the center.

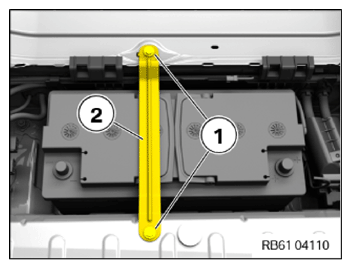

• Position rollover protection (2) and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Battery rollover protection on body
  Combination hexagon screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

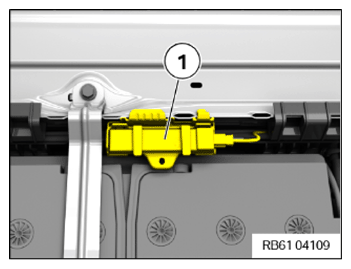

• Clip luggage compartment antenna (1) completely with the holder on the luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING ALL BATTERY GROUND LEADS .
