Installing the low power distribution box

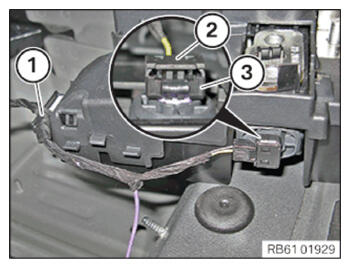

• Connect connector (3).
• Push the lock (2) downward.
• Clip in cable with holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

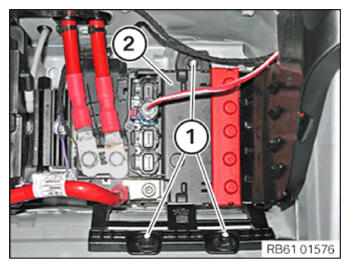

• Insert the power distribution box (2).
• Tighten plastic nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Power distribution box
  Plastic nut with flange	tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

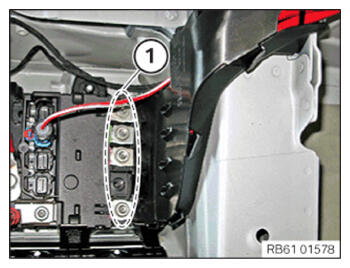

• Tighten all nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable
  Positive pole screw	tightening torque	15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

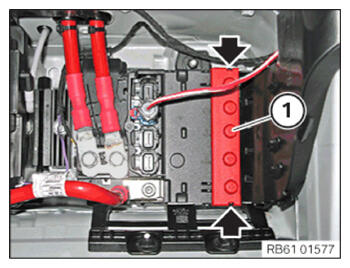

• Clip in the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

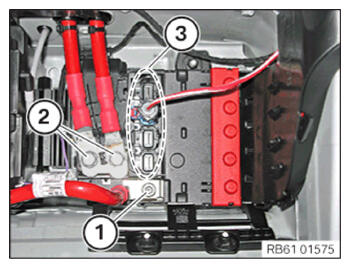

• Tighten the positive battery cable using the nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable
  Positive pole screw	tightening torque	15 Nm

• Tighten the positive battery cables using the screws (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable
  M8x16 screw	tightening torque	15 Nm

• Connect all connectors (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

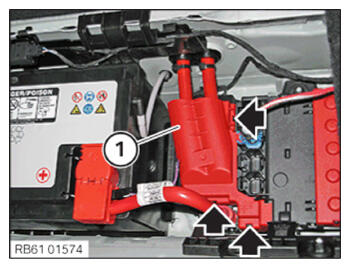

• Clip in the cover (1).

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
