Remove the trim panel for the storage shelf

Precondition

Rear seat backrests are folded

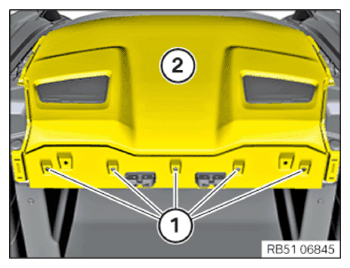

• Loosen the expanding rivet (1).
• Lift the trim panel for the storage shelf (2) a little and disconnect the underlying plug connections.
• Guide trim panel for the rear window shelf (2) to the front out of the guides and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
