Body Equipment -- Repair (3 Of 3) (G14, G15, & G16)
>>
51 46 Rear Deck Trim Panel, Roller SUNBLIND
>>
51 46 002 Replace the trim panel for the storage shelf (8' series coupe models 2019-2023)
>>

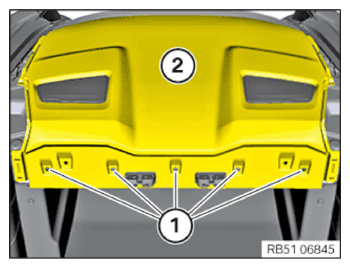

Install the trim panel for the storage shelf
Install the trim panel for the storage shelf
Install the trim panel for the storage shelf
(2)
.
Connect existing plug connections.
Feed in the trim panel for the storage shelf
(2)
at the rear guides and position it correctly.
Mount the expanding rivets
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
