Installing the upper B-pillar trim panel

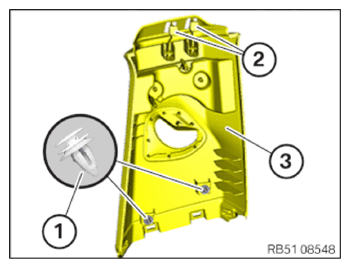

- Check clips (1) for damage.
- Defective or missing clips (1) must be replaced.
- Check guides (2) for damage.
Faulty or missing guides (2) of the top B-pillar trim panel (3) must be replaced.

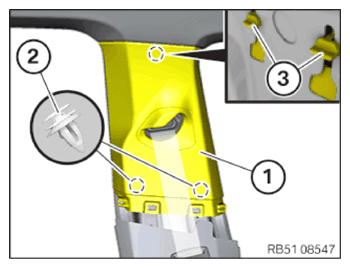

- Feed in the upper seat belt into the top B-pillar trim panel (1).
- Feed in the top B-pillar trim panel (1) into the guides (3).
- Feed in the top B-pillar trim panel (1) at the lip of edge protection at the front and rear.
- Clip the top B-pillar trim panel (1) into the clips (2).
- Adjust the front seat completely to the front and top.
- Insert the end fitting.

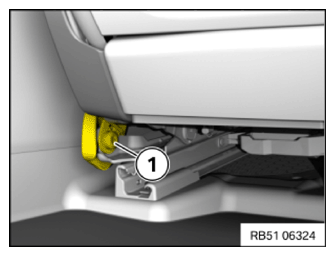

- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Seat belt strap fitting to seat mechanism | ||
|---|---|---|
| Flat-head screw M10 Replace screw. |
Tightening torque | 42 Nm |
Install the center B-pillar trim panel
Check

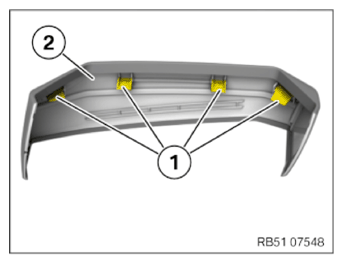

- Check snap-in lugs and clamps (1) for damage.
Result
Snap-in lugs are damaged.
Measure
- Replace the center B-pillar trim panel (2).
Parts: Center B-pillar trim panel
Result
Clamps (1) are damaged.
Measure
- Replace clamps (1).
Parts: Clamps

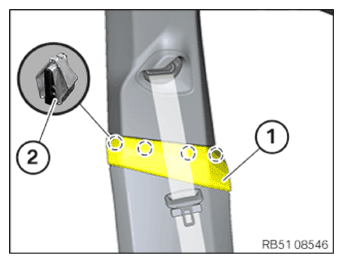

- Correctly position the center B-pillar trim panel (1) and engage it in the clamps (2).
