Removing rear door window glass (fixed)
Preliminary work
- Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to REMOVING REAR DOOR TRIM .
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.

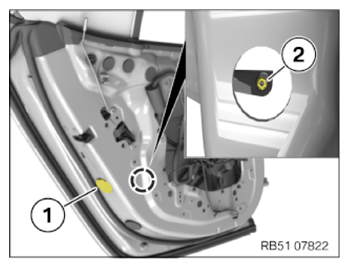

- Remove the seal plug (1).
- Release the nut (2).

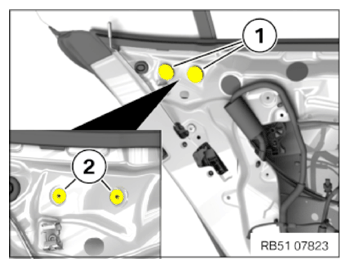

- Remove the seal plug (1).
- Loosen screws (2).
- Protect the outer window cavity against scratches with yellow plastic adhesive tape.CONSUMABLE SPECIFICATION

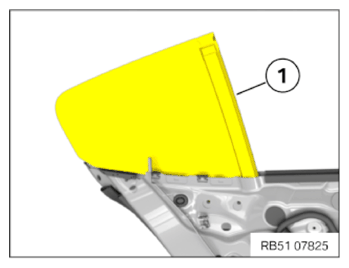

Yellow plastic adhesive tape 83199410979 - Guide the rear door window pane (1) out of the door to the top.
