Install the Soft-close motor

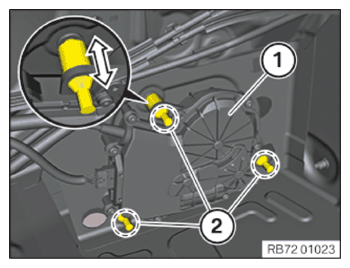

• Mount the soft-close motor (1) at the marked points (2) with the mounting elements in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

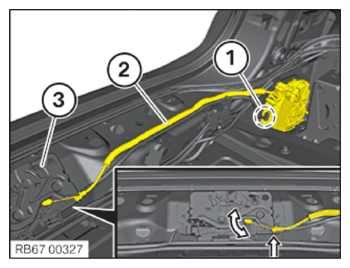

• Insert the Bowden cable (2) in the trunk lid lock (3) and clip it in.
• Clip in the Bowden cable (2) at the holders on the tail panel in the direction of the arrow.
• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
