Body Equipment -- Repair (2 Of 3) (G14, G15, & G16)
>>
51 22 Rear Door Locks, Handles, Fittings
>>
51 22 170 Removing and installing/replacing the outside door handle at the rear left or right (8' series Gran Coupe sedan models)
>>
Remove the rear outside door handle
Remove the rear outside door handle

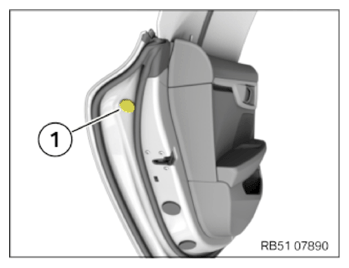

Remove the seal plug (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Release screw (1) with special tool
2 450 364
on outside door handle support.
Courtesy of BMW OF NORTH AMERICA, INC.
Pull rear outside door handle (1) in outward directions and feed out.
Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect plug connection (1) and remove outside door handle (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
