Installing the anti-roll bar link

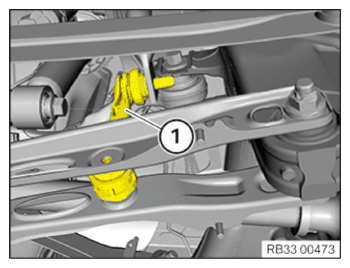

• Position the anti-roll bar link (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

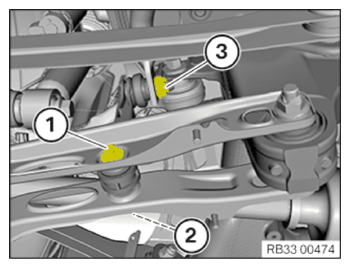

• Replace the screw (1) and the nuts (2) and (3).

  Parts:  Bolt, nuts

• Insert screw (1).
• Tighten nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Anti-roll bar link to camber control arm
  M10 Replace screw and nut. Tighten in normal position.	Joining torque	56 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Anti-roll bar link to anti-roll bar
  M12 Replace nut.	tightening torque	100 Nm

Follow-up work

• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
