Remove the HSR actuator
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING THE REAR LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to REMOVING THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING THE TORSION STRUT ON THE REAR LEFT AND RIGHT .
- Refer to IF INSTALLED: REMOVING THE REAR AXLE COVER .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING COMPLETE EXHAUST SYSTEM .
- Refer to REMOVING LEFT AND RIGHT TRANSVERSE CONTROL ARM .

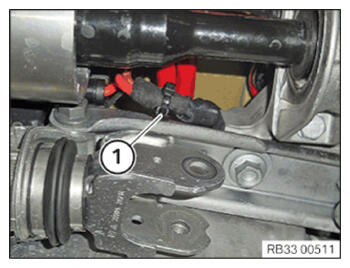

- Detach the wiring harness (1) from the HSR actuator.NOTE: TECHNICAL INFORMATION

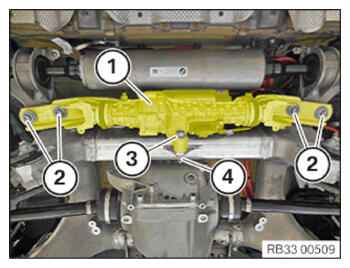

Secure component against falling. - Loosen nut (4).
- Pull out screw (3).
- Support the HSR actuator (1) with the help of a support person.
- Loosen screws (2).
- Slightly lower the HSR actuator.

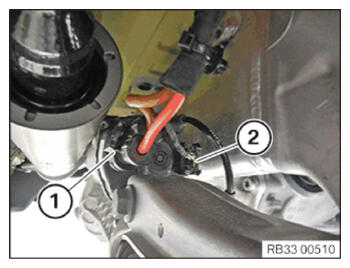

- Unlock and disconnect the plug connections (1) and (2).
- Remove the HSR actuator.
