Replacing the lid for the rear differential (M Sport differential)

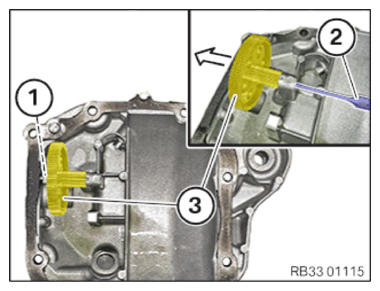

Knock out the intermediate gear shaft (1) with a standard tool (2) in arrow direction.
Remove the idler gear (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the lid.
Parts: Lid

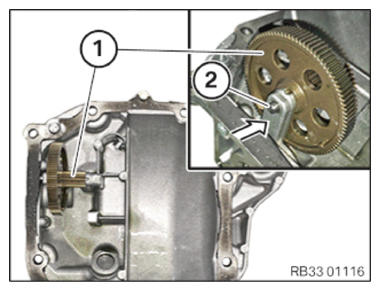

Position the idler gear (1).
Drive in the intermediate gear shaft (2) in arrow direction up to the stop.

Courtesy of BMW OF NORTH AMERICA, INC.
