Install The Rear Door
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Attach door from above.
- Secure door against closing.

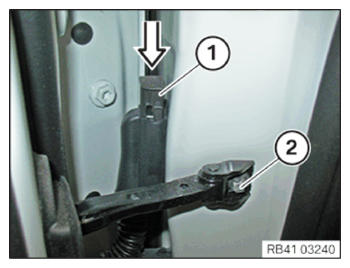

- Connect the plug connection and press down the lock (1).
- Tighten screw (2) at door stop.TIGHTENING TORQUES SPECIFICATION

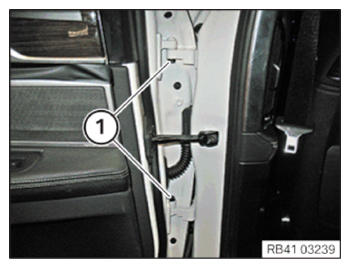

Door stop to pillar screw Tightening torque 28 Nm - Tighten screws (1) between both hinge elements at top and bottom.TIGHTENING TORQUES SPECIFICATION
Screw connection, hinge parts screw Tightening torque 27 Nm
