Installing The Reinforcement Of The B-Pillar
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment
- Clean bonding surfaces of the cavity sealing (1) with cleaning agent R1.CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding) - Apply sealant D1 to cavity sealing (1).CONSUMABLE SPECIFICATION
Sealant D1 (seam sealing) 310ml 83422409985 - Install cavity sealing (1) in the new part.
- Immediately before installation of the side panel, apply sealant D1 on the cavity sealing (1) (bonding surface to body).
- Install the new part using an alignment bracket or a universal fixture and secure it.

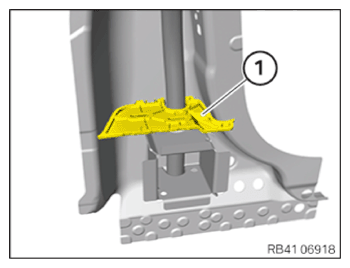

- Weld the new part in areas (1) according to the new part preparation process.
- Weld new part in the areas (1).NOTE: TECHNICAL INFORMATION

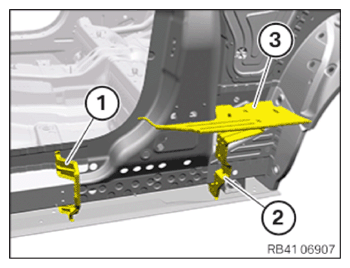

For additional information see: 41 00... Installation of a cavity sealing (not expanding) - Apply sealant to new cavity sealings (1) up to (3). Fit cavity sealings.

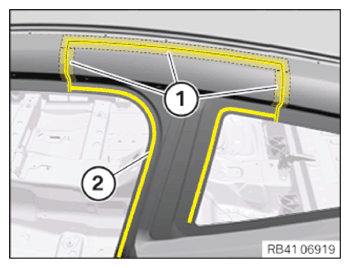

- Additional steps when installing the side panel:
Weld the side panel new part and reinforcement plates (1) in areas (2) and as per new part preparation processes.
