Install The Outer Section Of The A-Pillar
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

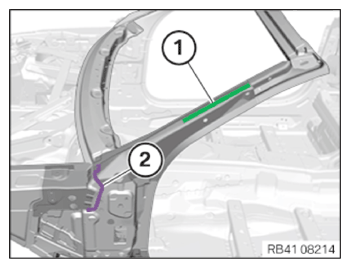

- Pre-clean adhesive area (1) on the vehicle and on the new part with solvent cleaner R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean adhesive area (1) on the vehicle and on the new part with solvent cleaner R1.CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K1 to the adhesive area (1).ADHESIVE SPECIFICATION
Body adhesive K1 195 ml 83190413015 NOTE: TECHNICAL INFORMATION

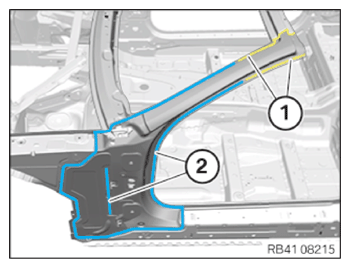

For additional information see: 41 00... Installation of cavity sealing (expanded) - Apply sealant D1 to cavity sealing (2).CONSUMABLE SPECIFICATION
Sealant D1 (seam sealing) 310ml 83422409985 - Install new part and weld in the areas (1) and (2) as per the new part preparation process.
