Retracting the roll bar

Check

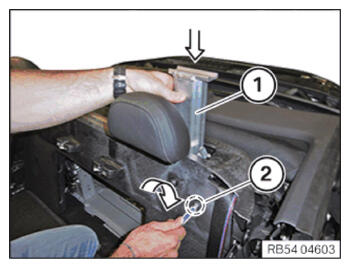

• Insert a 6-mm Allen wrench in the opening (2).
• Turn the Allen wrench by 90° and unlock the pawl.
• Manually allow the roll bar (1) to slide downward.

  The roll bar must not be allowed to fall down, otherwise the lower mount will be damaged!

• Check if the roll bar (1) easily slides down without resistance.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Roll bar does not slide down without resistance.

  Measure

  • Replace the rollover protection.

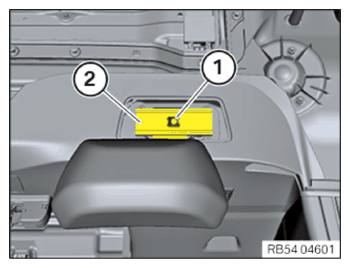

• Retracting the roll bar (2) completely.
• Insert the retaining clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

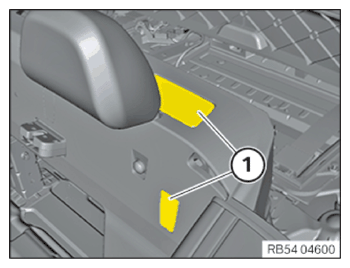

• Clip in the covers (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
