Installing the convertible top compartment lid mechanism

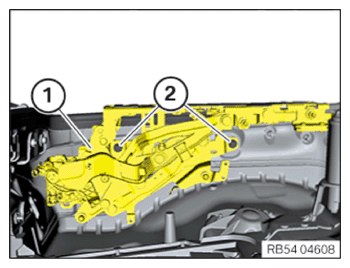

• Position the convertible top compartment lid mechanism (1) on the previously made mark.
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Convertible top compartment lid mechanism on bodyshell
  Screw	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

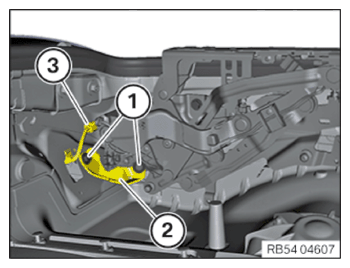

• Position the angle bracket (2).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Convertible top compartment lid mechanism on bodyshell
  Screw	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

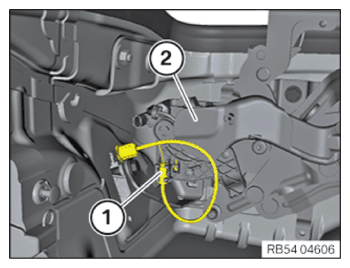

• Connect plug connection (3) and lock.
• Insert the Bowden cable for the convertible top compartment lid release (1) on the convertible top compartment lid mechanism (2) and clip it into place.

  Courtesy of BMW OF NORTH AMERICA, INC.

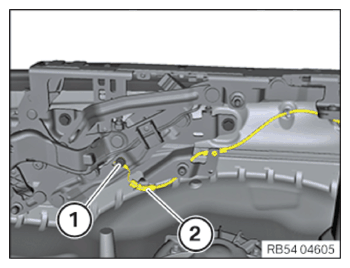

• Insert the Bowden cable (2) and clip it into place.
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

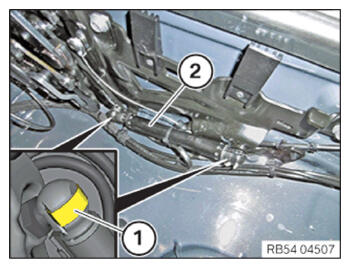

• Check that the retaining clips (1) on the hydraulic cylinder (2) are fitted correctly.
• Clip the hydraulic cylinder (2) into place on the corresponding ball-hubs.
• Clip the brackets for the respective hydraulic lines to the convertible top compartment hinge cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CONVERTIBLE TOP COMPARTMENT LID .
