Remove rear inner window channel strip
Precondition
- Convertible top is open.
Convertible top flap is in open position.
Wind deflector is removed.
Rear seat backrest is folded.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .
- Protect surfaces from damage.
Preliminary work
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to REMOVING THE SEAT BELT FINISHER STRIP .
- Refer to REMOVING REAR SIDE TRIM PANEL .
Precondition
Side window glass is open.

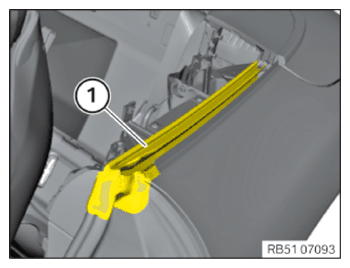

- Feed out the window channel strip (1) at front on the side section and pull out upwards on the entire length.
