Installing the electrical spindle drive for the right tailgate

• Before installing the electrical spindle drive for the right trunk lid (1), make sure that the retaining spring (2) is in its initial respective position.

  Courtesy of BMW OF NORTH AMERICA, INC.

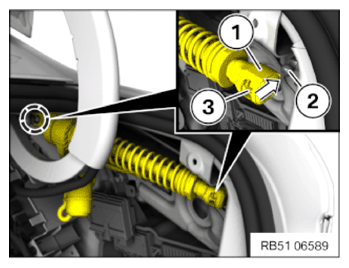

• Press the rear ball socket (1) on the body in the arrow direction onto the ball hubs (2) until the retaining spring (3) engages correctly and audibly.
• Press the front ball socket (1) on the tailgate hinge onto the ball hubs (2) until the retaining spring (3) engages correctly and audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

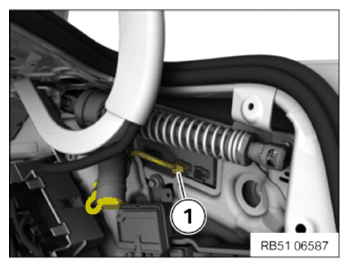

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
• Refer to INSTALLING LED IN THE LUGGAGE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
