Installing the seal from the windshield panel

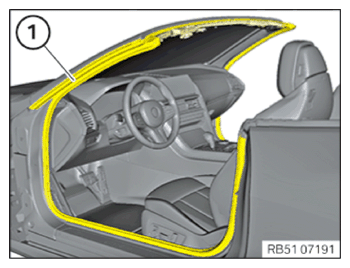

- Place the seal on the windshield panel (2) on the body.
- Make sure the seal on the windshield panel is fitted properly (1)
on all adjacent parts.

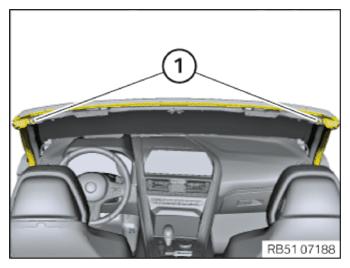

- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Seal on windshield panel | ||
|---|---|---|
| Oval-head screw | tightening torque | 1.6 Nm |
Follow-up work
- Refer to INSTALLING THE TRIM STRIP ON THE A-PILLAR .
- Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
- Refer to INSTALLING THE WINDOW CHANNEL STRIP AT REAR OUTER LEFT AND RIGHT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE COVER FOR THE TOP HEADLINER .
- Refer to INSTALLING THE TRIM ON THE UPPER WINDSHIELD PANEL .
- Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING THE LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
