Installing the undershield on the sides

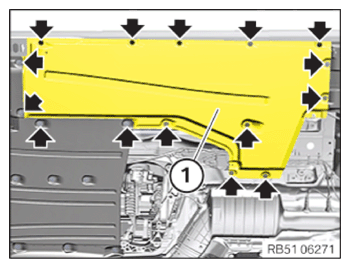

- Insert the undershield (1).
- Tighten all bolts and nuts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Undershield, side |
| Hexagon screw |
Tightening torque |
2.6 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
