Remove tailgate trim panel
Preliminary work
- Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
- Refer to REMOVING THE POWER TAILGATE SWITCH .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Unclip the clips (1) in the direction of the arrow using the special tool 0 490 534 (00 9 317)
.

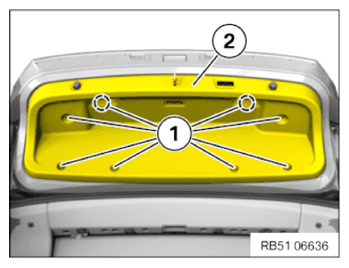

- Remove expanding rivets (1) from the tailgate trim panel (2).
- Remove tailgate trim panel (2).
