51 47 165 Removing and installing/replacing trunk trim panel, top (8' series convertible models 2019-2023)
>>
Installing the top luggage compartment trim panel
Installing the top luggage compartment trim panel

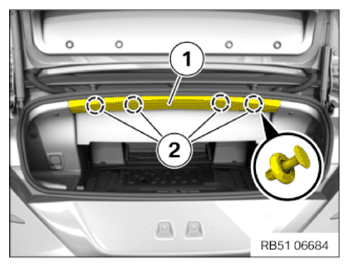

Position the top luggage compartment trim panel (1).
Secure expanding rivet (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING TRUNK COMPARTMENT LIGHT
.
