51 47 065 Removing and installing/replacing sill trim, front left or right (8' series Gran Coupe sedan models 2020-2023)
>>
Install the front sill trim
Install the front sill trim

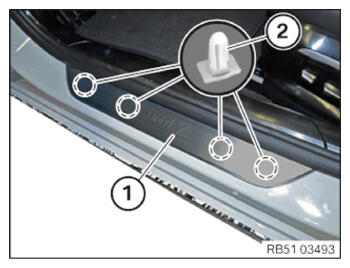

If necessary, unclip the clips (2) from the door sill with a suitable tool.
If necessary, replace faulty clips (2).
Clip in the front sill trim (1) with the clips (2).
