51 45 Dashboard Trim, Instrument Panel Trim
>>
51 45 195 Removing and installing instrument trim panel trim at bottom right
>>
Install the footwell trim panel on the right
Install the footwell trim panel on the right
Connect associated connector.

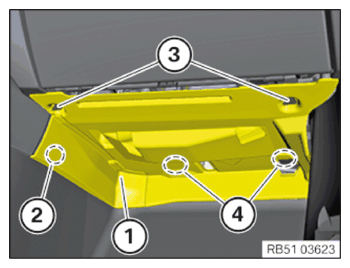

Attach the right footwell trim panel (1) in the guides (4) and fold up.
Clip the right footwell trim panel (1) in the area (2) into the center console.
Insert locks (3) correctly and turn 90°.
Courtesy of BMW OF NORTH AMERICA, INC.
