Fit the roof lining

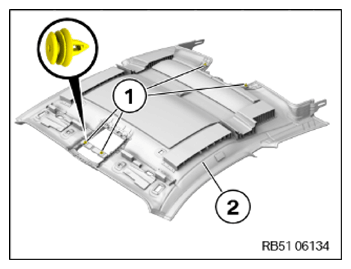

- Check the clips (1) on the headlining (2) for damage and replace, if necessary.
- Insert the headlining (1) with a support person through the cutout of the windshield.
- Position the headlining (1) with the aid of a support person.

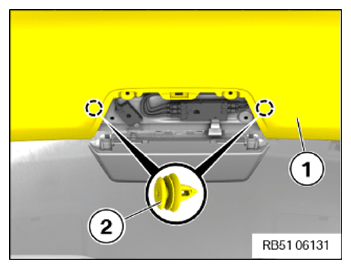

- Clip in the headlining (2) using the clips (1).

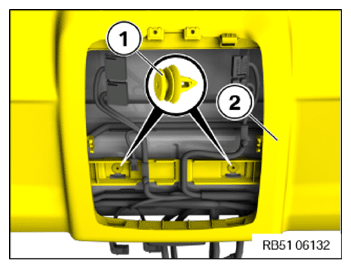

- Clip in the headlining (1) using the clips (2).
Check

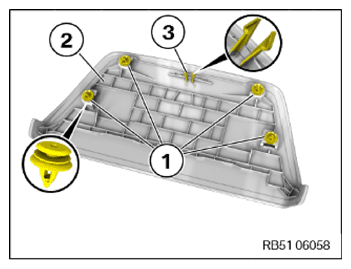

- Check clips (1) on the trim (2) for damage and replace, if necessary.
- Check the detent (3) on the trim (2) for damage.
Result
Detent is damaged.
Measure
- Replace cover of the auxiliary brake light (2).
- Fit the cover of the auxiliary brake light (1) from the bottom.

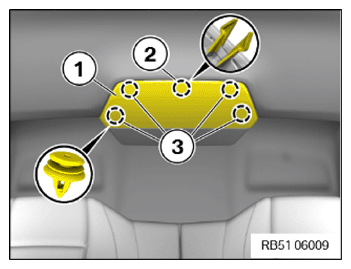

- Clip in the cover of the auxiliary brake light (1) with the clips (3) and the detent (2).NOTE: Perform the steps on the right and left side.

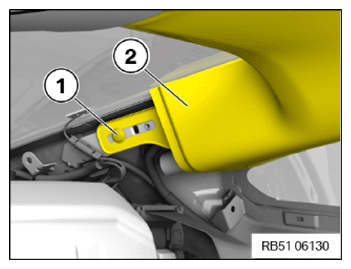

- Fasten the expanding rivet (1) on the headlining (2).
Follow-up work
- Refer to INSTALLING WINDSHIELD .
- Refer to ATTACHING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING THE KAFAS CAMERA .
- Refer to INSTALLING THE RAIN-LIGHT-SOLAR-CONDENSATION SENSOR (PARTIALLY REMOVED) .
- Refer to INSTALLING INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
- Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to PARTIALLY INSTALLING BOTH TRIM PANELS FOR BODY PILLAR .
- Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to INSTALLING BOTH REAR SIDE TRIM PANELS .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to CALIBRATE KAFAS CAMERA .
