Remove the module bracket rearward

Preliminary work

• Refer to REMOVING REAR DOOR TRIM .

• Release the acoustic fleece from the module carrier.

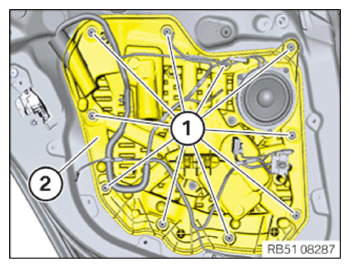

• Release nuts (1) using special tool 0 496 726 (51 0 400)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Release all the plug connections on the rear module carrier (2).
• Remove rear module carrier (2).

Courtesy of BMW OF NORTH AMERICA, INC.
