Remove front electric power windows
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to REMOVING THE OUTER FRONT WINDOW CHANNEL STRIP .
- Refer to RELEASING THE FRONT DOOR WINDOW GLASS .
- Refer to REMOVING FRONT DOOR TRIM PANEL .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE FRONT MODULE BRACKET .
- Refer to REMOVING FRONT DOOR WINDOW GLASS .
- Refer to REMOVING THE FLAT MOTOR FOR THE FRONT POWER WINDOWS .

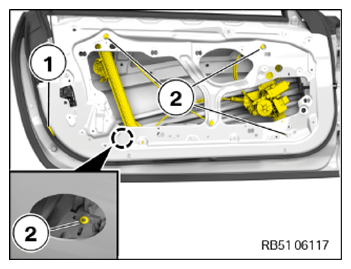

- Remove plug (1).
- Loosen nuts (2).

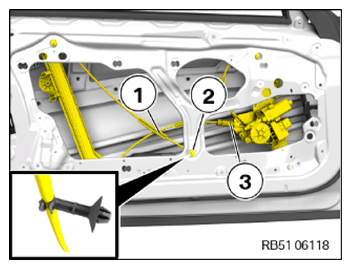

- Unclip the Bowden cable (1) from the clip (2).
- Feed out the front power electric windows (3) through the door opening.
