51 31 011 Replace windshield (8' series convertible models)
>>
Replacing the spacer
Replacing the spacer
When installing the windshield, remove adhesive residue from the body and clean the adhesive area.

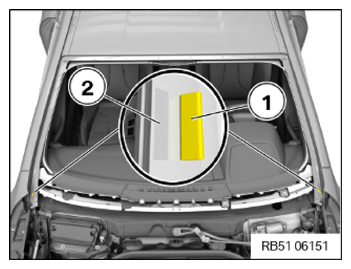

Completely remove available spacer buffers
(1)
.
Glue new spacer buffers
(1)
centered on the body-side embossed marks
(2)
.
Parts:
Spacer buffer
Courtesy of BMW OF NORTH AMERICA, INC.
