Remount the rain-light-solar-condensation sensor

• Carefully clean new windshield in the contact area (1) of the rain-light-solar-condensation sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

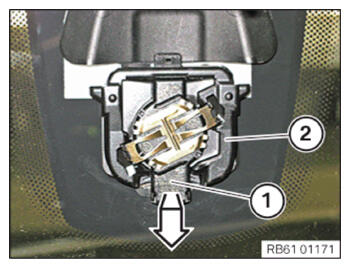

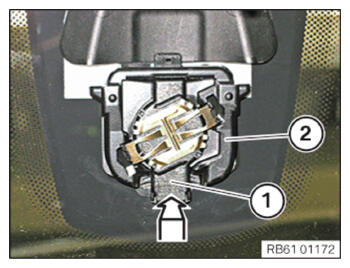

• Slowly detach the rain-light-solar-condensation sensor (1) from the holder (2) in the direction of the arrow and simultaneously monitor the release of silicone surface from the outside.

  The silicone surface must evenly loosen from the windshield, if required, detach slower.

Courtesy of BMW OF NORTH AMERICA, INC.

Checking the gel pad

Check

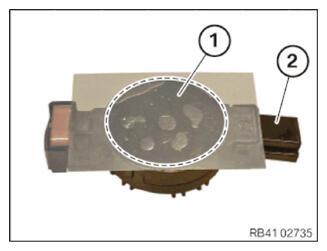

• Check the silicone-coated surface (1) and the PCB (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

The silicone-coated surface (1) is damaged.

Measure

• Replace the gel pad.

Result

PCB (2) is damaged.

Measure

• Replace rain-light-solar-condensation sensor.

Replacing the gel pad

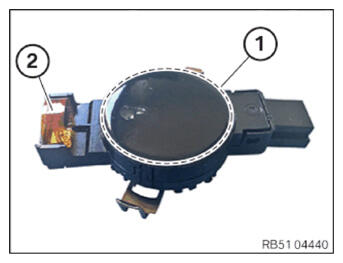

• Pull off the gel pad (1) manually.

  Do not touch or damage the PCB (2).

• Remove present residual gel using a microfiber cloth.
• Clean the surface of the rain-light-solar-condensation sensor with a microfiber cloth soaked in a solvent cleaner R2.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gel pad.

  Parts:  Gel pad

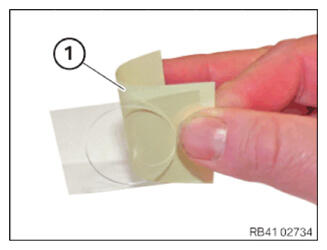

• Pull off the yellow protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the gel pad (1) centrally on the surface of the rain-light-solar-condensation sensor (2).

  Do not squeeze out any air pockets present.

  Air pockets disappear within 30 min after assembly of the sensor on the windshield.

  Courtesy of BMW OF NORTH AMERICA, INC.

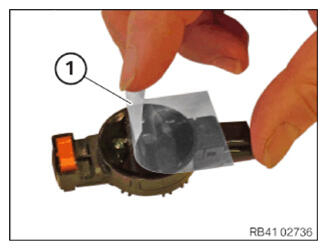

• Pull off the protective film (1).

Courtesy of BMW OF NORTH AMERICA, INC.

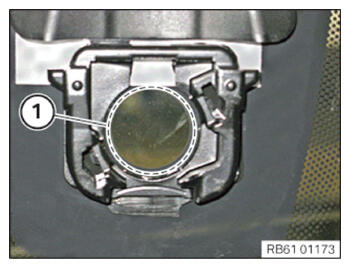

• Feed the rain-light-solar and condensation sensor (1) into the holder (2) on the new windshield in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

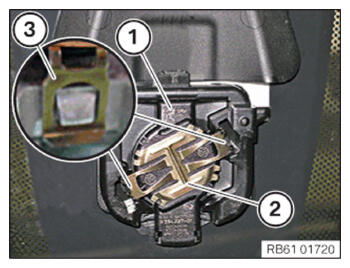

• Centrally press on the rain-light-solar-condensation sensor (2) onto the retaining spring (3).

  To lock, consecutively press down both sheet metal tabs (4) on every side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check field of view for air pockets.

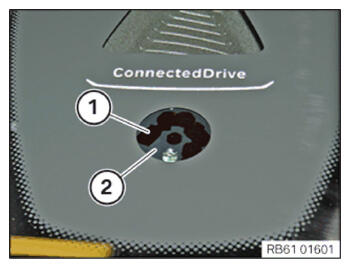

  Visible shading (1) and (2) do not represent air pockets, but indicate the optical element of the sensor. This is not a functional limitation.
