Removing rear model designation
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
- Mask off the working area with adhesive tape.

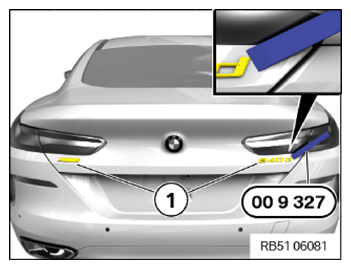

- Heat the model designation (1) carefully with a hot air blower and detach it from the trunk lid with the special tool 0 496 571 (00 9 327) .
TECHNICAL DATA SPECIFICATION
| Heating using hot air blower | |
|---|---|
| Surface temperature | 40°C... 50°C |
- Remove adhesive residue on the trunk lid and clean the adhesive area with cleaning agent R2.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
