Install exhaust cover

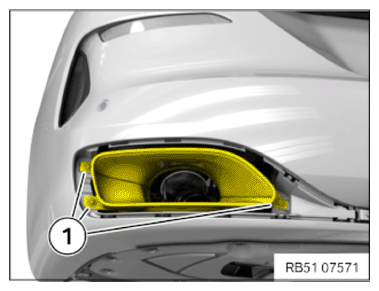

- Mount the exhaust cover (2) and position centrally in the cutout of the bumper cover.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Exhaust system trim to rear bumper cover | ||
|---|---|---|
| Hexagon screw | tightening torque | 3 Nm |

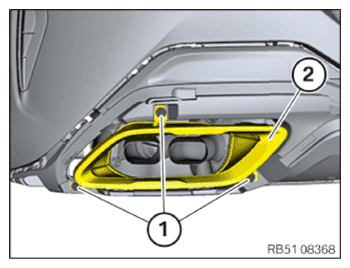

- Position exhaust cover (2) and position centrally in the cutout of the bumper cover.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Exhaust system trim to rear bumper cover | ||
|---|---|---|
| Hexagon screw | tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING THE REAR BUMPER TRIM .
- Refer to INSTALLING THE SIDE REAR TRIM STRIP .
