Body Gap Dimension REH-Hin-P-4100-G14_15_16 - V.3 (8' Series Sedan Model 2019-2023)
General Notes
The dimensions stated in this information apply at an object temperature of 20 °C.
The aim of adjustment is to achieve a uniform gap
Symmetry of the gaps between left and right sides of the vehicle has top priority.
In terms of door gaps the maximum deviation between the front and rear door gap must be 1.0 mm.
No gap dimension are specified for components which cannot be adjusted.

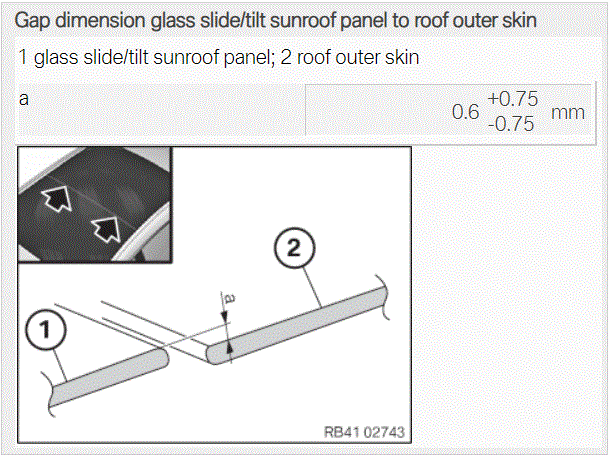

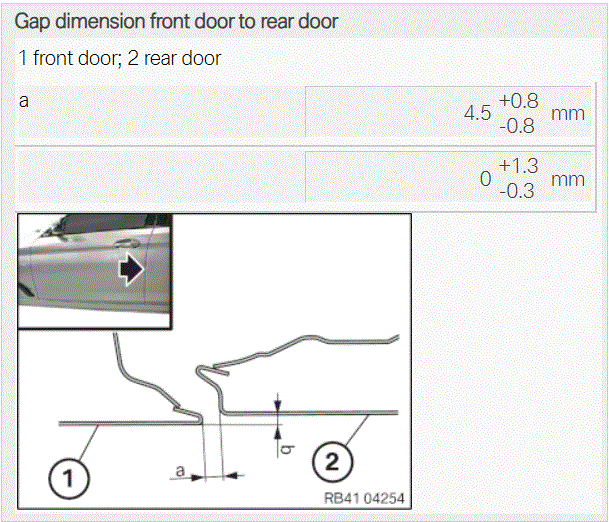

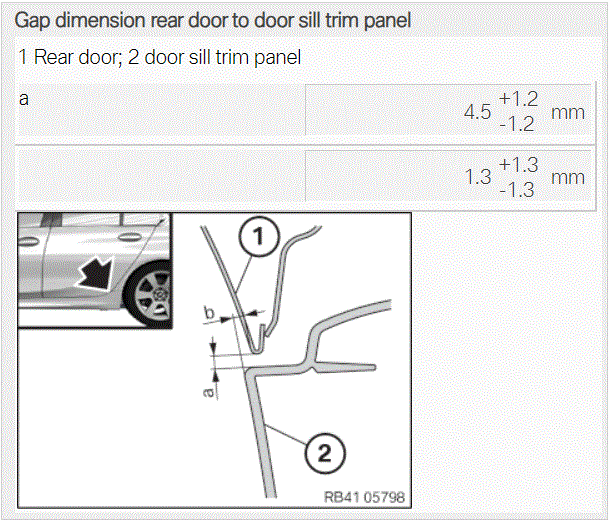

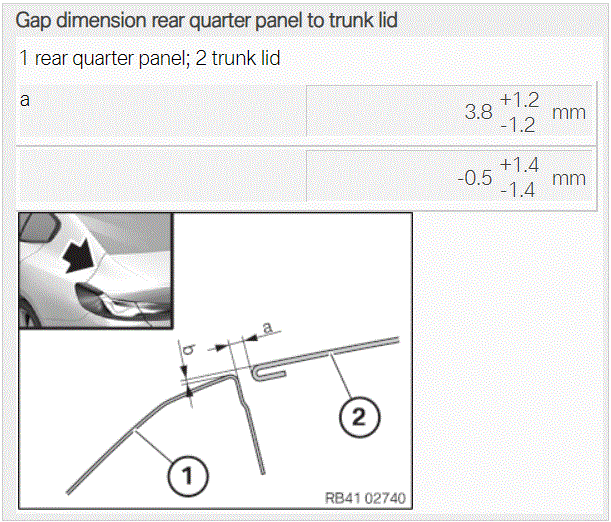

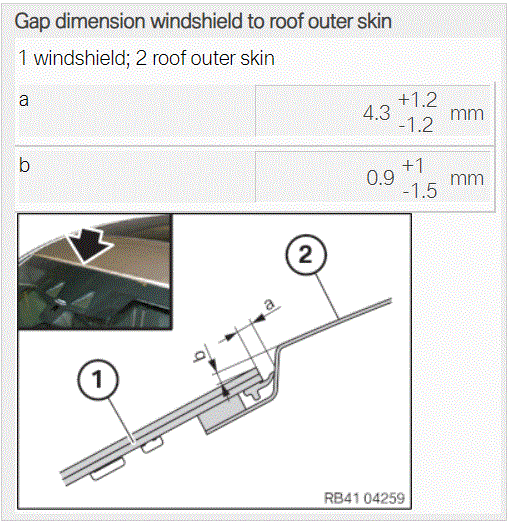

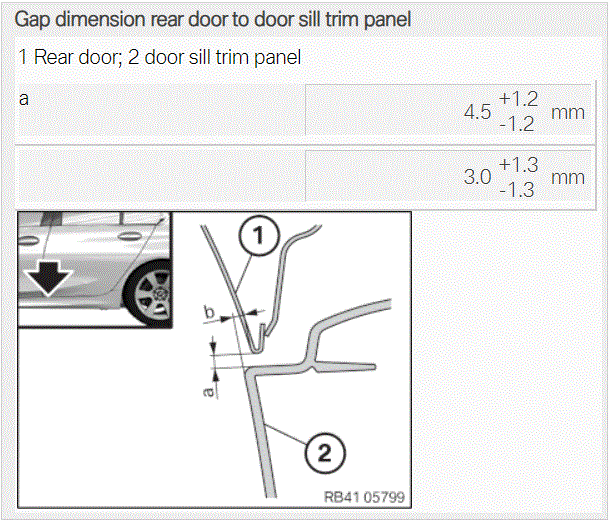

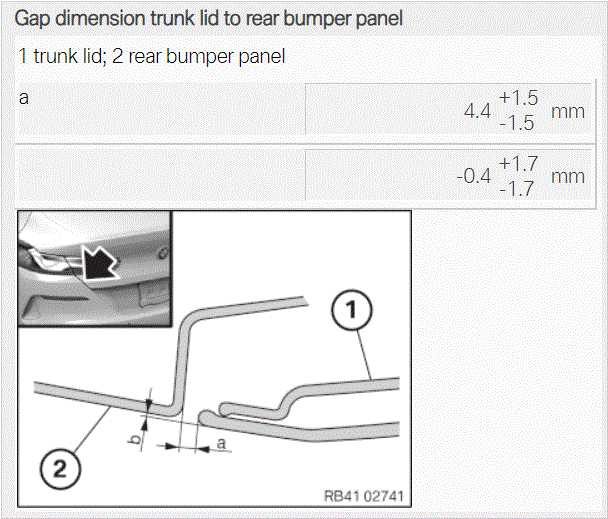

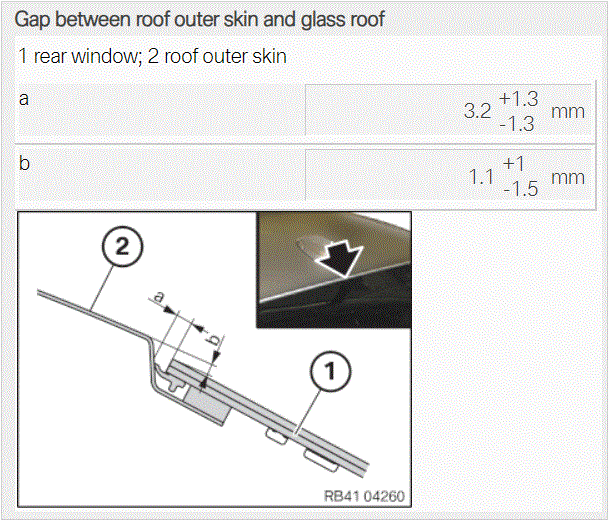

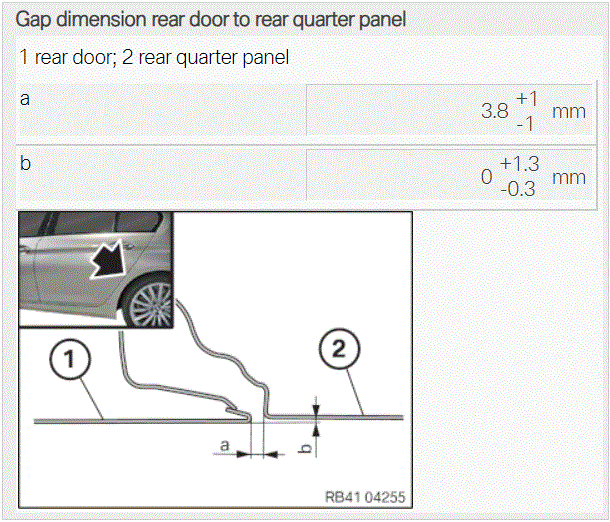

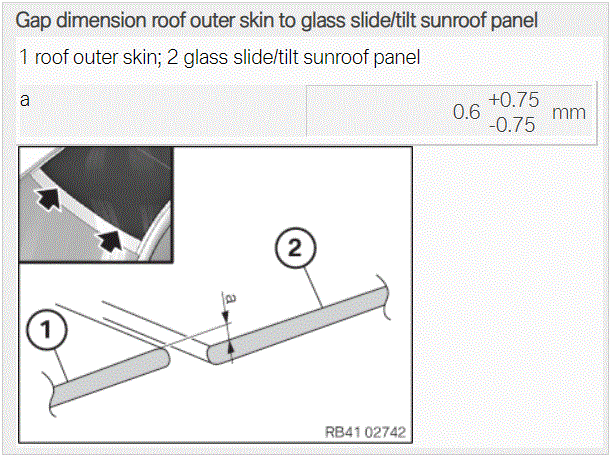

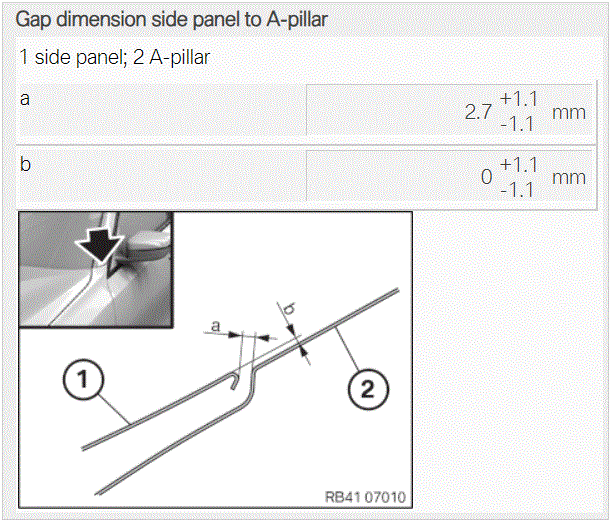

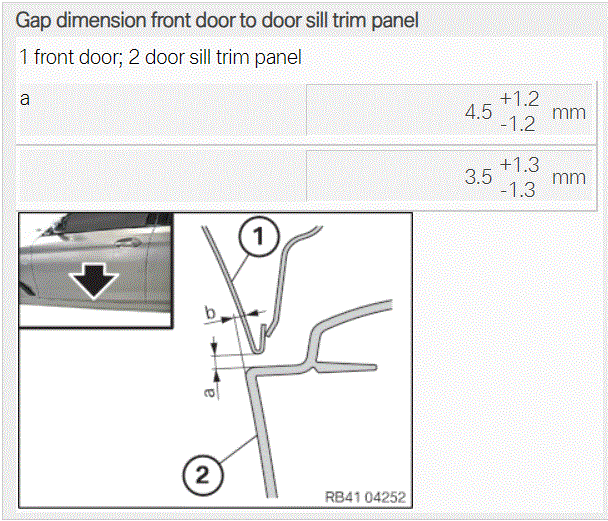

Gap Dimensions
