Body Gap Dimension REH-Hin-P-4100-G14_15_16 - V.3 (8' Series Coupe Model 2019-2023)

General Notes

The dimensions stated in this information apply at an object temperature of 20 °C.

The aim of adjustment is to achieve a uniform gap

Symmetry of the gaps between left and right sides of the vehicle has top priority.

In terms of door gaps the maximum deviation between the front and rear door gap must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Gap Dimensions

Fig 1: Hood And Grille Panel Gap Dimensions And Measurement Points (Coupe)

G00639541

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Hood And Headlamp Panel Gap Dimensions And Measurement Points (Coupe)

G00639542

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Hood And Front Fender Panel Gap Dimensions And Measurement Points (Coupe)

G00639543

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Front Fender And Front Pillar Panel Gap Dimensions And Measurement Points (Coupe)

G00639544

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Windshield And Roof Panel Gap Dimensions And Measurement Points (Coupe)

G00639557

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Front Fender And Front Door Panel Gap Dimensions And Measurement Points (Coupe)

G00639545

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Front Door And Side Sill Trim Panel Gap Dimensions And Measurement Points (Coupe)

G00639546

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Front Door And Quarter Panel Gap Dimensions And Measurement Points (Coupe)

G00639551

Courtesy of BMW OF NORTH AMERICA, INC.

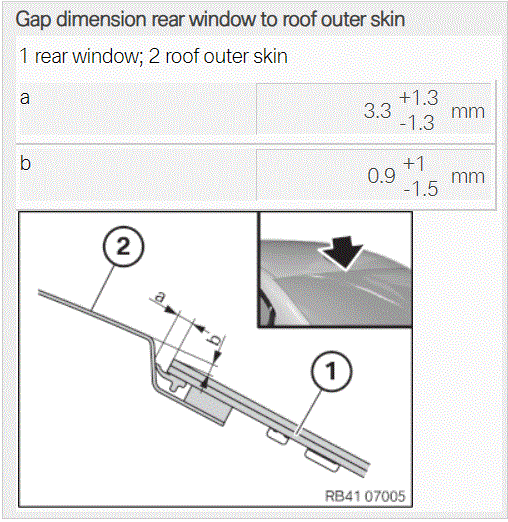

Fig 9: Rear Window And Roof Panel Gap Dimensions And Measurement Points (Coupe)

G00639558

Courtesy of BMW OF NORTH AMERICA, INC.

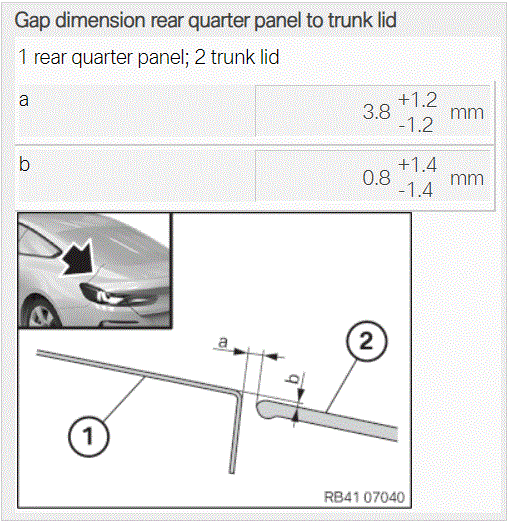

Fig 10: Quarter Panel And Trunk Lid Panel Gap Dimensions And Measurement Points (Coupe)

G00639559

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Trunk Lid And Rear Bumper Panel Gap Dimensions And Measurement Points (Coupe)

G00639556

Courtesy of BMW OF NORTH AMERICA, INC.
