Installing front drive system for roller sunblind

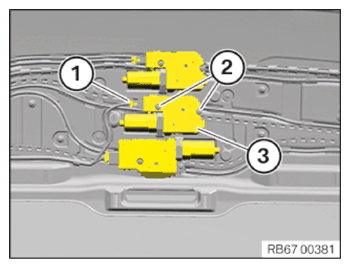

- Guide in the drive of the front roller sunblinds (3) and position it correctly.
- Tighten the screws (2)
.TIGHTENING TORQUES SPECIFICATION
Drive on body Screw tightening torque 8.60 Nm - Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE HEADLINING (LOWERED WITH PANORAMIC GLASS SUNROOF) .
- Refer to INSTALLING INTERIOR ROOF LIGHT .
- Refer to INSTALLING THE GRAB HANDLE AT THE REAR LEFT AND RIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
- Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
- Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to INSTALLING BOTH BACKREST SIDE SECTIONS .
- Refer to PARTIALLY INSTALLING BOTH B-PILLAR TRIM PANELS AT TOP .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
