Remove relay for fan control
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .

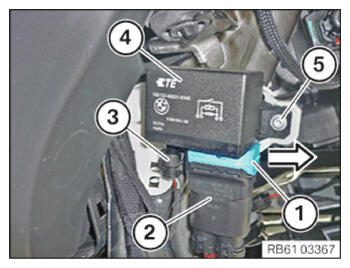

- Release locking mechanism (1) in direction of arrow.
- Release connector (2).
- Unlock and disconnect the plug (3).
- Release screw (5) and remove the relay for fan control (4).
