Installing the relay for the fan control

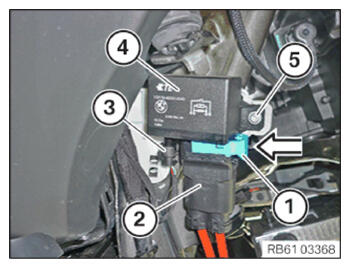

- Position fan control relay (4) and tighten screw (5).TIGHTENING TORQUES SPECIFICATION
Relay for fan control Screw tightening torque 2.8 Nm - Connect connector (3).
- Connect the connector (2) and shift the lock (1) in the arrow direction.
Follow-up work
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
