Removing the storage tray for the near field communication
Precondition
- Lid of the storage compartment is open
Preliminary work
- Refer to REMOVING CUP HOLDER .

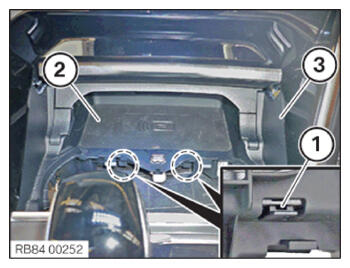

- Release the detents (1) and remove the storage tray (2) from the storage compartment (3) at the front.
- Unlock associated plug connections and disconnect.
