Replacing the trims on the operating unit in the center console

Removing trim panels on the operating facility in the center console

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .

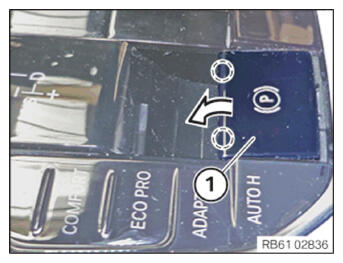

Press trim for the parking brake button (1) in the arrow direction, forward and downward.
NOTE: The trim of the parking brake button releases by forcefully pressing it out of the detents.

Courtesy of BMW OF NORTH AMERICA, INC.

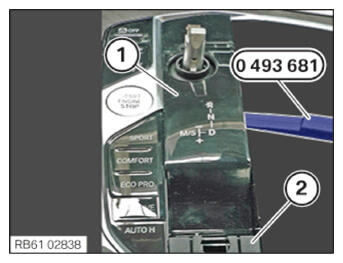

Lever out the trim (2) with the special tool 0 493 681 (64 1 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

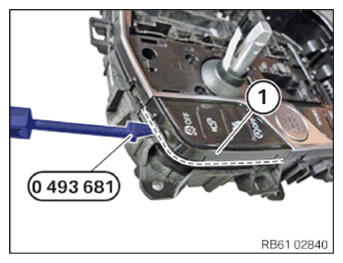

Lever out the trim (1) with the special tool 0 493 681 (64 1 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

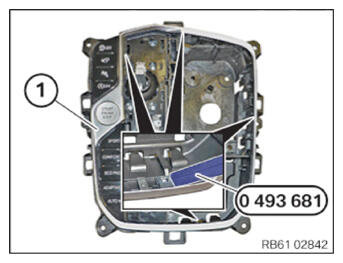

Lever out the trim (1) with special tool 0 493 681 (64 1 020) at the marked positions .

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the trims on the operating unit in the center console.
Parts: Trims on the operating unit in the center console

Installing the trims on the operating facility in the center console

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces .
Plastic wedges can damage high-quality surfaces .

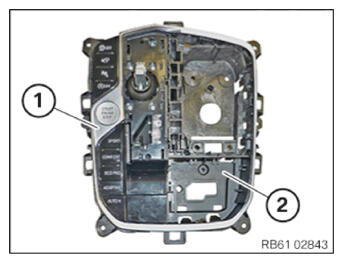

Position trim (1) on the operating facility in the center console (2) and engage.
All snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

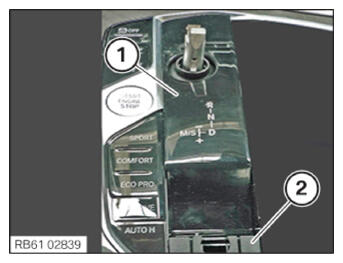

Position trim (1) and clip in.

Courtesy of BMW OF NORTH AMERICA, INC.

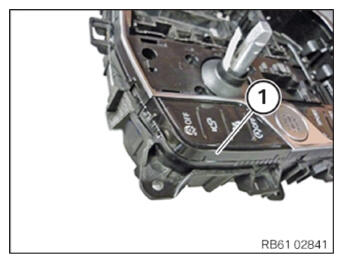

Position trim (1) on the operating facility in the center console (2) and engage it.
All snap-in lugs must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

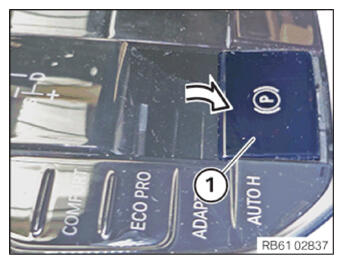

Position the trim (1) for the parking brake button and lock in place in the arrow direction.
The trim of the parking brake button (1) must lock audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
