General Electrical System -- Repair (G14, G15, & G16)
>>
61 31 Switches
>>
61 31 118 Removing and installing/replacing the power window switch on the passenger's side
>>
When replacing the power window switch on the right: remounting switch trim
When replacing the power window switch on the right: remounting switch trim

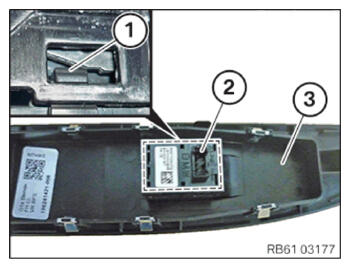

Unlock all detents (1).
Remove power window switch (2) from the switch trim (3).
Replace power window switch (2).
Parts:
Power window switch
Position the power window switch (2) (3) at the switch trim and clip it in.
Courtesy of BMW OF NORTH AMERICA, INC.
