Installing the 12-V lithium-ion auxiliary battery
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Unprotected battery terminals
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Cover the vehicle battery.

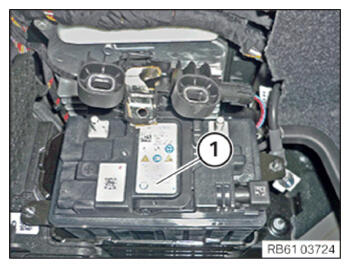

- Position 12-V lithium-ion auxiliary battery (1).

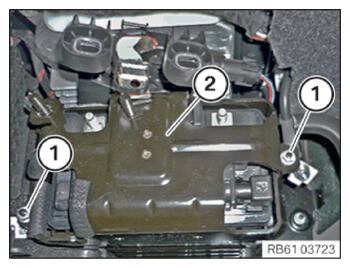

- Position battery cover (2).
- Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION
Battery cover to battery carrier Nut M6 Tightening torque 8 Nm WARNING: Incorrect screw connection of the positive battery cable .
Risk of fire!- Ensure that the positive battery cable is screwed with the correct nut.

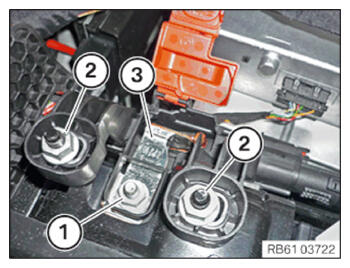

- Position the positive battery cable (3) on the positive battery terminal.
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION
Positive battery cable to 12-V lithium-ion auxiliary battery Nut M8 Tightening torque 19 Nm - Tighten nuts (2).TIGHTENING TORQUES SPECIFICATION

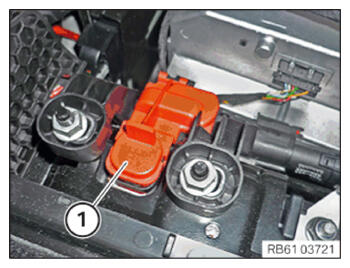

Positive battery cable to 12-V lithium-ion auxiliary battery Nut M8 Tightening torque 19 Nm - Close the positive terminal cover (1).

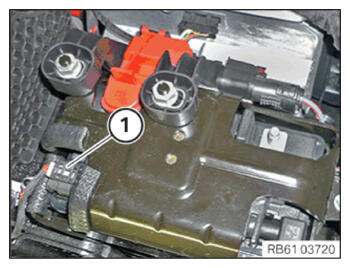

- Connect connectors (1) and lock.
Follow-up work
- Refer to ACTIVATING ON-BOARD NETWORK .
