Removing the rear head restraint

Precondition

Convertible top is completely open.

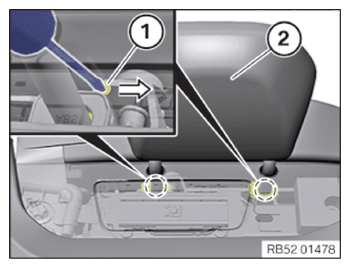

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Using a suitable standard tool, release both clamps (1) at the same time in the direction arrowed, and pull the head restraints (2) out upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

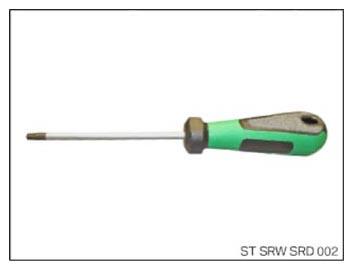

Standard tools: Screwdriver for slot (B=2)

Screwdriver for slot (B=2)

Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver for slot (B=2)

up to Screwdriver for slot (B=3.5)

Screwdriver for slot (B=3.5)

Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver for slot (B=3.5)
